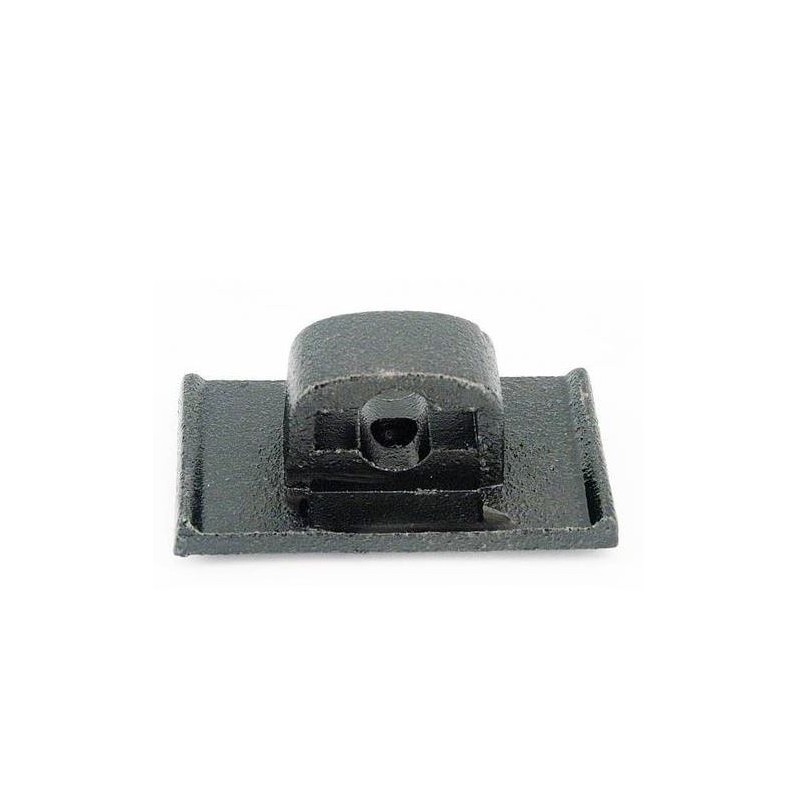

A-5461-A

This is an early crank guide used from the beginning of production until February 1930.

Used with the square top U-bracket

A NOTICE:

The quality of these parts is not the best!

They are approximately 0.50" thicker than the originals, which may result in

that the pin holes do not line up with the U-bolts.

The two recesses that engage in the holes in the cross member

have too large a diameter and the center-to-center distance is wider than they should be.

They can be filed appropriately so that they fit properly into the cross member.

Our tip:

If possible, use a good, used original part
