Bolt set (brass) with 14-24 thread
for Magneto with original Ford sprocket
Ford Model T 1909-1927

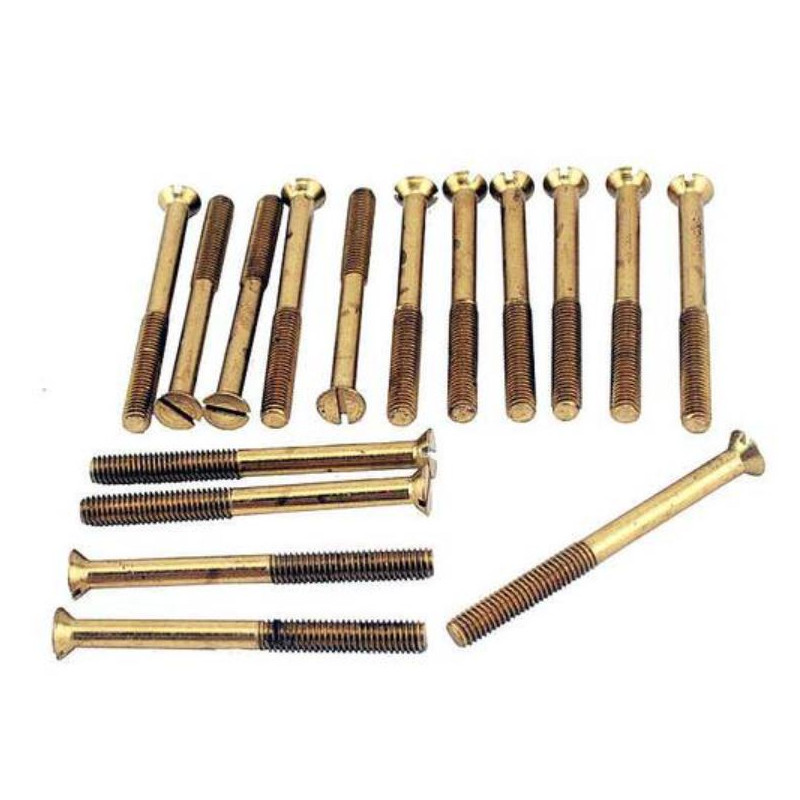

This is a set of 16 pieces of special threaded brass bolts,
which is used to hold the magnets and the flywheel ring gear
This bolt has a special 14-24 thread and is only suitable for Ford manufactured sprockets
the outside diameter of the thread measures 6.05mm
Danger:
These bolts only fit the original Ford sprockets
They are not suitable for the replica reproduction dental arches
Notice :
if you use these bolts with 14"24 thread on a reproduction sprocket,
The thread will not be able to transmit the force because the thread diameter is too small
Important:
Since both bolts have the same pitch of 24 threads, they are very easy to mix up
Our tip:
If you are not sure which thread is present in your sprocket,
order one bolt at a time. This is to check the thread
Installation instructions:
Do not use old bolts because you will use the bolts after assembly
must be caulked at the back with a cross chisel or center punch to secure it
