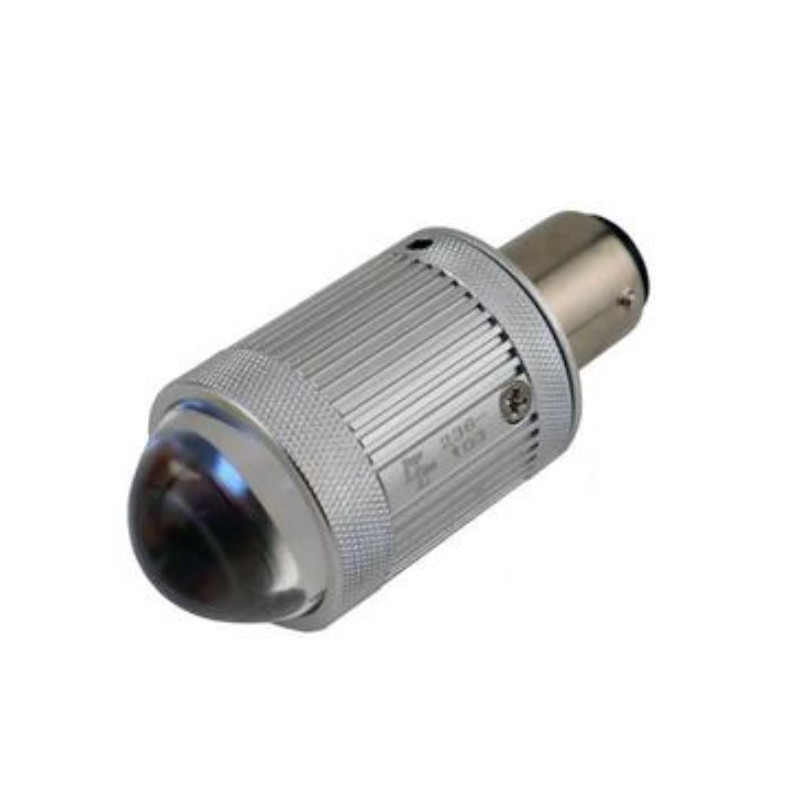

T-13007-LED

This is a special adjustable LED headlight bulb.

This bulb works on 6, 8 and 12 volt applications

and can be operated with positive or negative ground.

The bulb offers true high and low beam with a bright white light.

It only consumes 1.3 amps for low and high beam.

The bulb can be rotated to allow for different pin orientations on headlight sockets.

Installation instructions:

The black strip on the LED bulb must face upwards when the bulb is installed.

To adjust the position of the black strip, remove the light bulb,

Use the included Allen key to loosen both set bolts 1/2 turn.

Match the base to the case.

Danger:

Be careful not to damage the wires in the base.

If the wires cannot be turned in one direction in the base,

rotate the base in the opposite direction to the desired angle.

Tighten the set bolts and the light bulb with the black stripe

install upwards

If the high and low beams are upside down, loosen the adjusting bolts as described above,

Rotate the base a semicircle (180 degrees) and tighten the set bolts.
