T-1500-REB

Only for vehicles with wooden rims

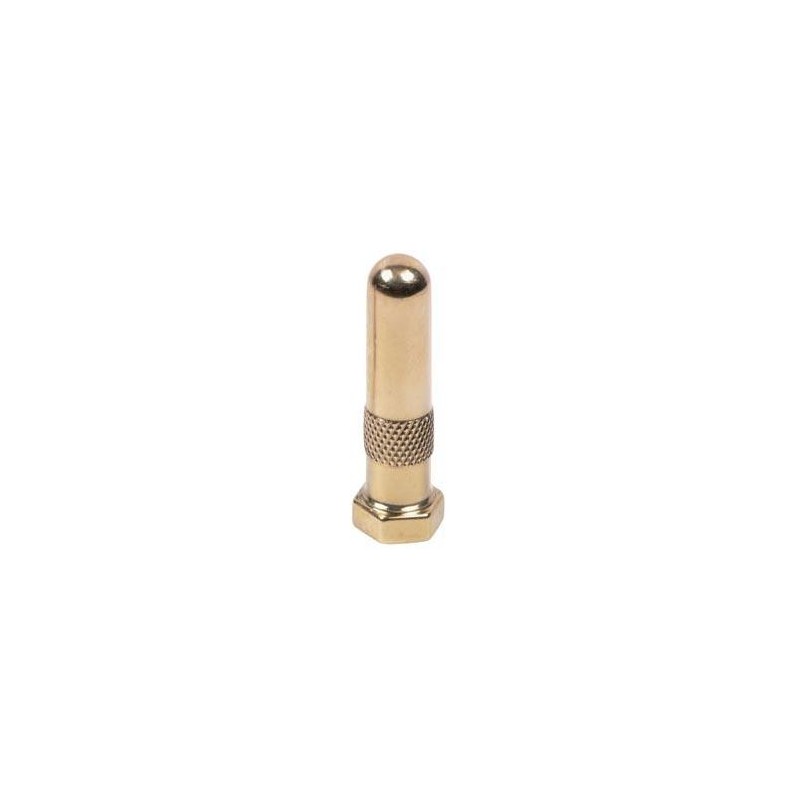

These brass dust caps attach to rubber valve stems through the 5/16 thread,

which is usually covered by a plastic valve cap on a new hose.

Simply remove the plastic dust caps and replace them with these authentic looking brass dust caps.

A movable insert inside the dust cap can be adjusted with a 3/8 Allen key so that the dust cap sits firmly on

the rim presses

Use the included rubber washer to prevent the cover from damaging the paint on the rim or rim flange.

Bolt the cover on until it touches the washer

Then turn it another half turn while pulling it up, which will stretch the rubber stem slightly so that when you release it

there is a slight tension that prevents the brass cover from coming loose.

The insert is designed to fit more tightly into the brass cover than onto the valve stem

If you find that this is not the case and the insert remains on the spindle instead of remaining in the cover,

First check that the insert moves freely on the threads of the spindle.

If not, run a die over the spindle threads to clean them.

If this is the case, the insert in the cover must be moved more slowly.

This can be done by carefully compressing the last threads of the insert with side cutters

Place the pliers on the hexagon socket of the insert on one of the surfaces and proceed carefully.

If the compression is too strong, the insert will get stuck in the cover and the hexagon socket will be knocked out with the wrench!

Notice :

This valve cap fits all Model-Ts from 1909 to 1927

You need 4 pieces per vehicle
